Description

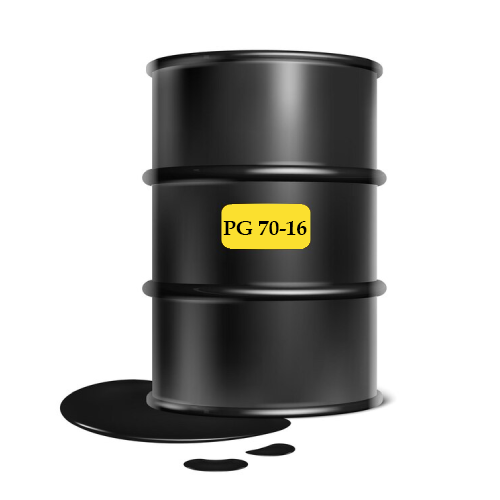

Performance Grade Bitumen PG 70-16 is the latest bitumen standard. This is a new bitumen standard method based on variable temperatures. This method examines the mechanical characteristics of bitumen. Since the temperature range for bitumen is defined in this method, the consumer can easily choose the desired product.
Performance grade for polymer modified bitumen and pure bitumen is determined by environmental conditions and temperature. The range of PG grades is wider, higher resistance and more favorable characteristics.
applications of Performance Grade Bitumen PG 70-16
- road construction
- used in very cold areas
- spraying and crack sealing applications
- paving for both dense-graded and open-graded Hot Mix Asphalt (HMA)
Specification of Performance Grade Bitumen PG 70-16
|
Property |
PG70 | Test Method |
|
16 |
||
|
Average 7-day maximum pavement Design Temperature, °C |
<70 | |
|
minimum pavement Design Temperature, °C |
> -16 | |
| Original Binder | ||
| Flash Point Temperature Minimum °C | 230 |
AASHTO T48 |
|
Viscosity maximum 3 Pa.s, Test Temperature,°C |
135 | AASHTO T316 |
|
Dynamic Shear G*/sin minimum 2.2 KPa Test Temperature,°C |
70 | AASHTO T315 |
| Rolling Thin Film Oven Test |
AASHTO T240 |
|
| Mass change maximum percent | 1.00 | |
|
Dynamic Shear G*/sin minimum 2.2 KPa Test Temperature, @ 10 rad/s °C |
70 | AASHTO T315 |
|
Pressure Aging Vessel |
AASHTO R28 | |
| PAV aging Temperature, °C | 100(110) | |
| Dynamic Shear G*/sin maximum 5000 KPa Test Temperature, @ 10 rad/s °C | 31 |
AASHTO T315 |
|
Creep Stuffiness S maximum 300 Mpa m-value minimum 0.300 Test Temperature,@ 60s °C |
-6 | AASHTO T313 |
|
Direct Tension Failure strain minimum 1 % Test Temperature @ 1mm/min, °C |
-6 |
AASHTO T314 |
| Critical low cracking Temperature Critical cracking determined by PP42 Test Temperature | -6 |
AASHTO PP42 |
