Description

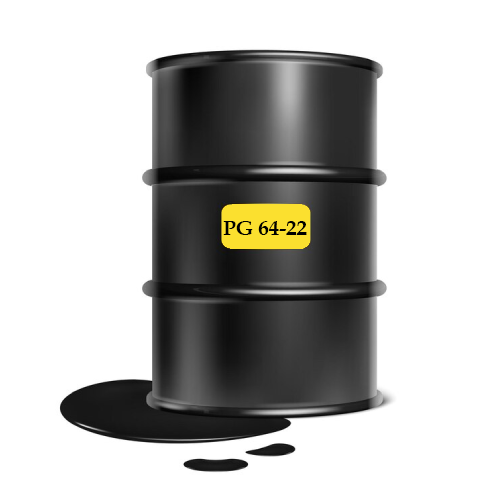

Performance Grade Bitumen PG 64-22 is a functional bitumen. this bitumen, which is graded based on its performance at different temperatures, is classified and used based on two factors, traffic and pavement temperature.
The performance grade of bitumen or PG is the latest standard of the world. This method is a relatively new method that classifies bitumen based on the temperature conditions of different regions.
In this method, the mechanical properties of bitumen are examined from completely scientific methods. In this method, a temperature range is assigned to the bitumen, and the consumer can choose the appropriate bitumen according to his desired location.
Application of Performance Grade Bitumen PG 64-22
- Hot Mix Asphalt (HMA)
- spray applications for bridge deck
- pavement protective membrane with fabrics
- sealing of edges of new to old paving and crack sealing
- paving for both new construction and pavement rehabilitation
- used in temperate regions with very cold winters
Specification of Performance Grade Bitumen PG 64-22
| Property | PG64 | Test Method |
| 22 | ||
| Average 7-day maximum pavement Design Temperature, °C | 64 | |
| minimum pavement Design Temperature, °C | > -22 | |
| Original Binder | ||
| Flash Point Temperature Minimum °C | 230 | AASHTO T48 |
| Viscosity maximum 3 Pa.s, Test Temperature,°C | 135 | AASHTO T316 |
| Dynamic Shear G*/sin minimum 2.2 KPa Test Temperature,°C | 64 | AASHTO T315 |
| Rolling Thin Film Oven Test | AASHTO T240 | |
| Mass change maximum percent | 1.00 | |
| Dynamic Shear G*/sin minimum 2.2 KPa Test Temperature, @ 10 rad/s °C | 64 | AASHTO T315 |
| Pressure Aging Vessel | AASHTO R28 | |
| PAV aging Temperature, °C | 100 | |
| Dynamic Shear G*/sin maximum 5000 KPa Test Temperature, @ 10 rad/s °C | 25 | AASHTO T315 |
| Creep Stuffiness S maximum 300 Mpa m-value minimum 0.300 Test Temperature,@ 60s °C | -12 | AASHTO T313 |
| Direct Tension Failure strain minimum 1 % Test Temperature @ 1mm/min, °C | -12 | AASHTO T314 |
| Critical low cracking Temperature Critical cracking determined by PP42 Test Temperature | -12 | AASHTO PP42 |
